Introduction of full automatic particle board production line
Sumto is a professional full automatic particle board production line manufacture, particle board line produced by Sumto has capacity 10,000~300,000 cbm/year. The particle board can be produce different size, like 4×8ft, 4×9ft, 5×9ft, 6×8ft, 6×9ft, 6×12ft, etc. After utilized overseas advanced technology, and reviewed other particle board production line machine experience, our company, Sumto launched highly automated, reasonable layout drawing, working stable production line. |
 |
|
 |
Program of full automatic particle board production line:
Producing type: Normal particle board, homogeneous particle board
Capacity: 10,000~300,000 cbm/year
Board size: 4×8ft, 4×9ft, 5×9ft, 6×8ft, 6×9ft, 6×12ft
Thickness: 8~40mm ( calculate based: 16mm )
Density: 550~760 kg/m3
Quality standard: GB/T4897.1~4897.7—2003, EN312:2003 P2 |
|
 |
|
 |
There are some different machines in full automatic particle board production line, the drum chipper, knife ring flaker, dryer, hot press, sanding machines, etc. Different machines determine different board quality and producing technology. The particle board has excellent effects on sound insulation and moth proof comparing to normal board. Particle board is widely use in house furniture. |
 |
|
 |
In fact, full automatic particle board production line is just one type machinery for producing decor board. Here are different way for dividing particle board type and producing technology:
1-According to manufacturing technology, it can divided to normal particle board, homogeneous particle board.
2-As using different material, it can divided to bagasse particle board, reed particle board, rice straw particle board, cotton straw particle board, wood based particle board.

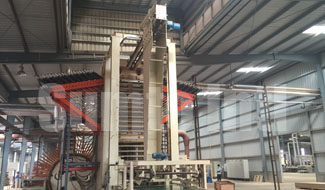

3-For particle board production line, it mainly has three type pressing methods, single layer hot press, multi opening hot press, continuous flat hot pressing. |
 |
|
 |
| The operating principle of particle board production line is crushing wood branch, waste wood or other material, after drying and screening, the small piece chipper though glue mixing conveyed to forming machine then pressing and sanding. However, this kind particle board is just we called raw board, it have to processing again. Sumto short cycle melamine lamination hot press do melamine paper to particle board lamination work. Only after laminating, the board will be used for different decor work. |
 |
|
 |
People can find the products of particle board production line in normal life. The particle board not only used for decorating work, it also used for furniture, wood package, car and ship decorating.
|
 |
|
 |
| |
